Manufacturer of Micro Slitter Machine.

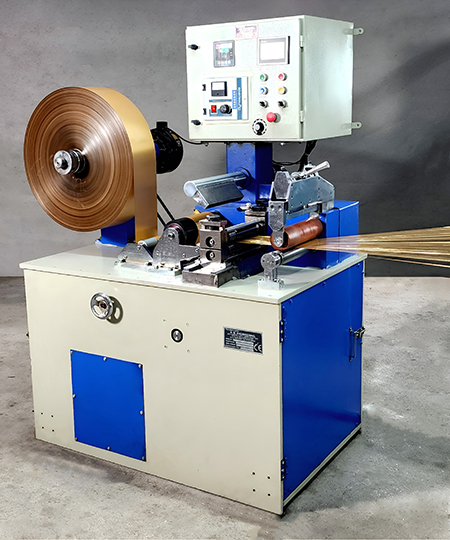

Micro Slitter Machine

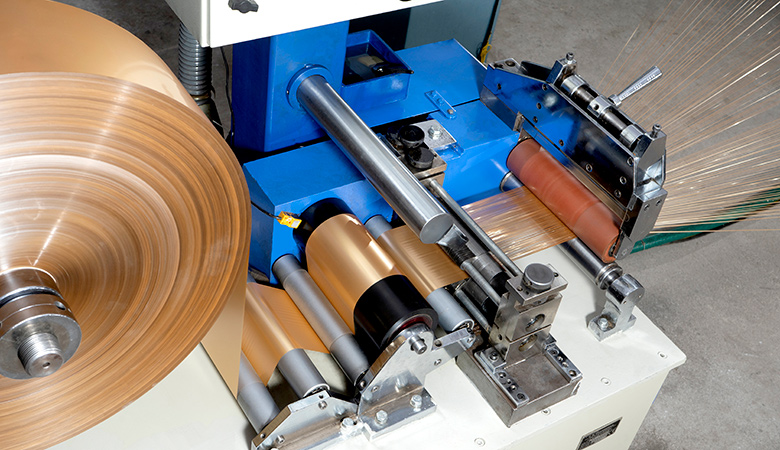

Micro Slitter Machine
Micro Slitter Machine

Micro Slitter - Feature

  • Material to be slit is positioned easily at unwind shaft by one knob operation.
  • Smooth start lead by A.C. Drive Motor / Servo Motor.
  • Cutter unit accurately & efficiently built to eliminate friction heat, thrust pressure, jerking of cutters and obtains beautiful cutting face of yarn.
  • Cutter unit is quickly & easily interchangeable.
  • Cutters are well quenched, carefully sharpened, reasonably set, to last for 6,000-10,000 hours working.
  • Unwind tension is controlled completely by electrical brake and any torque can be easily set up by one knob operation & servo motor & drive.
  • Length counting device measures accurately length of the material to be slitted.

Material

Material to be handled PET Film
Maximum web width 200mm
Web thickness 12 Micron to 50 Micron (50 to 100 gauge)
Max. unwind diameter 500mm
I.D. of unwind core 75mm

Slitter: Model No SMS 360 / 432 / 540

Specification Model 360 Model 432 Model 540
Cutter Size 43mm / 51mm 43mm / 51mm 43mm / 51mm
Minimum Slit Width 0.15mm 0.15mm 0.15mm
Slitting Speed (Max) 310 Meters / min. 310 Meters / min. 310 Meters / min.
Speed Change Servo Drive / A.C. Motor Servo Drive / A.C. Motor Servo Drive / Motor
Main Motor 7.5 HP, 440 Volts / 4.5 KW Servo 15 HP, 440 Volts / 5.5 KW Servo 15 HP, 440 Volts / 5.5 KW Servo
Cooling Blower for Cutter 1 H.P. 1.5 H.P. 1.5 H.P.
Unwind Brake Electrical brake 5 Kg. nM torque Electric Magnetic brake particles 10kg nM torque Electric Magnetic brake particles 10kg nM torque

# Specification are subject to change.
